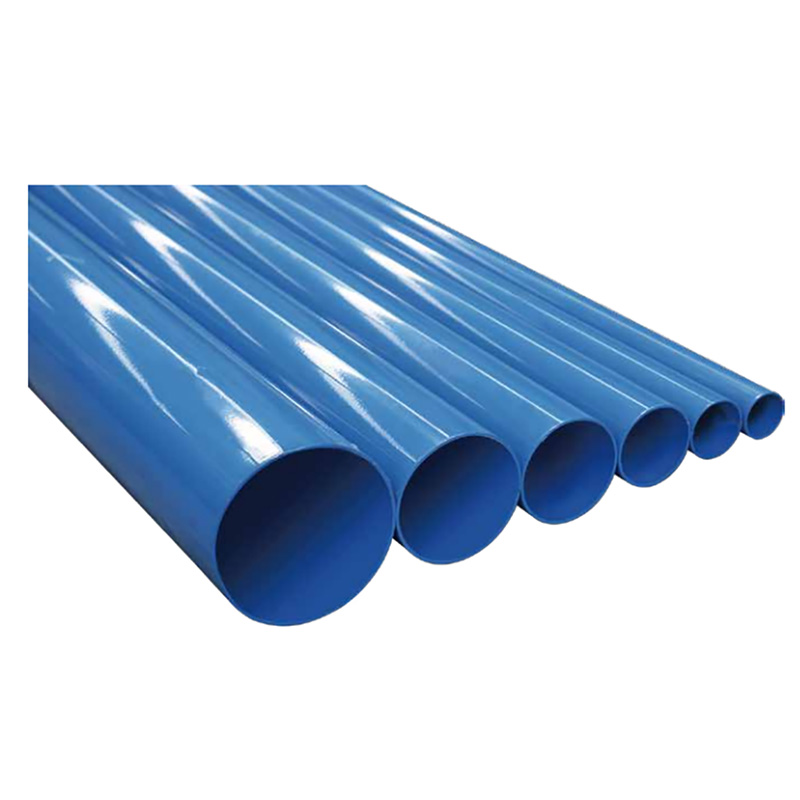

| 型号 | 规格(mm) | 货描 |
|---|---|---|
| DN20铝管 | 20 | 蓝色合金铝管,5.8米,外径20.1 |
| DN25铝管 | 25 | 蓝色合金铝管,5.8米,外径25.1 |
| DN40铝管 | 40 | 蓝色合金铝管,5.8米,外径40.1 |
| DN50铝管 | 50 | 蓝色合金铝管,5.8米,外径50.1 |
| DN63铝管 | 63 | 蓝色合金铝管,5.8米,外径67.6 |
| DN80铝管 | 80 | 蓝色合金铝管,5.8米,外径84.8 |
| DN100铝管 | 100 | 蓝色合金铝管,5.8米,外径101.8 |
| DN125铝管 | 125 | 蓝色合金铝管,5.8米,外径133 |
| DN150铝管 | 150 | 蓝色合金铝管,5.8米,外径153 |
| DN200铝管 | 200 | 蓝色合金铝管,5.8米,外径205 |
| DN148铝管 | 148 | 蓝色合金铝管,5.8米,外径148 |

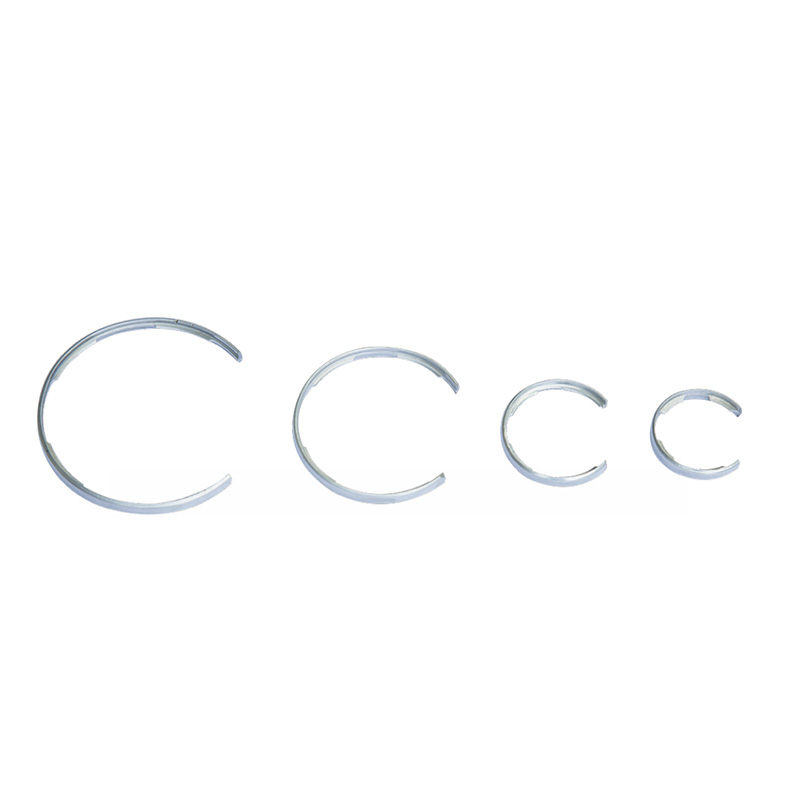

| 型号 | 货描 | 安装时伸入长度S |
|---|---|---|
| DN20卡爪 | 适用于所有DN20管件 | 30 |
| DN25卡爪 | 适用于所有DN25管件 | 30 |
| DN40卡爪 | 适用于所有DN40管件 | 40 |
| DN50卡爪 | 适用于所有DN50管件 | 40 |
| *卡爪为选配件，应选配与管件对应的型号和数量 *安装时必须保证伸入长度S | ||
| *Paws are optional accessories, and the model and quantity corresponding to pipe fittings should be selected * during installation, the extension length s must be ensured. | ||

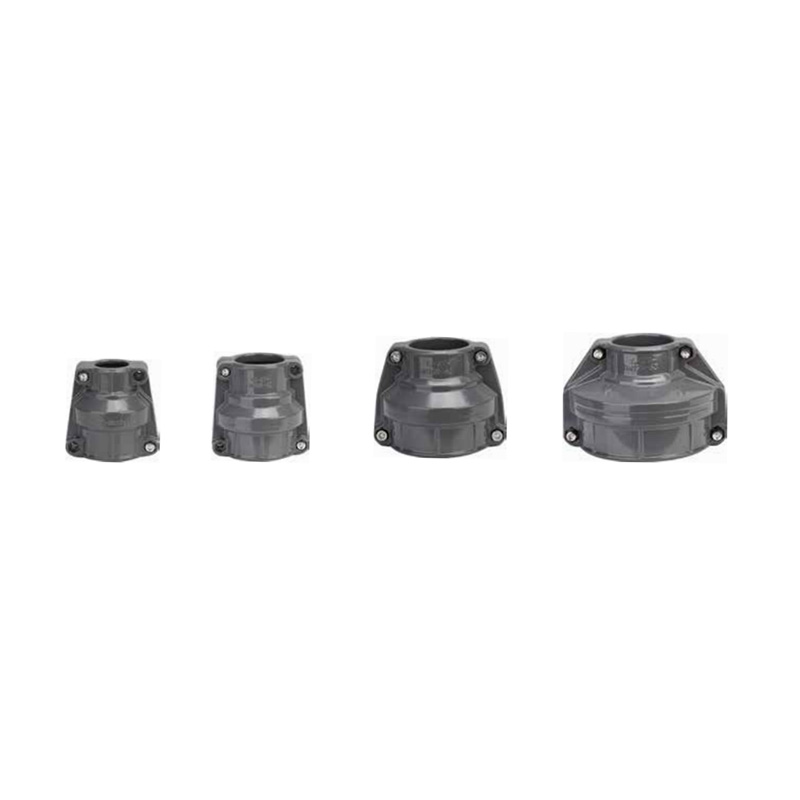

| 型号 | 规格 (mm) | 货描 | L | A | B |
|---|---|---|---|---|---|
| YJ-ZT-DN25-20 | 25-20 | 变径管对管,DN25-DN20 | 60 | 61.5 | 41.5 |
| YJ-ZT-DN40-25 | 40-25 | 变径管对管,DN40-DN25 | 70 | 72 | 58 |
| YJ-ZT-DN50-25 | 50-25 | 变径管对管,DN50-DN25 | 70 | 82 | 72.5 |
| YJ-ZT-DN50-40 | 50-40 | 变径管对管,DN50-DN40 | 80 | 82 | 72.5 |
| YJ-ZT-DN63-40 | 63-40 | 变径管对管,DN63-DN40 | 97 | 117 | 97 |
| YJ-ZT-DN63-50 | 63-50 | 变径管对管,DN63-DN50 | 97 | 117 | 97 |
| YJ-ZT-DN80-40 | 80-40 | 变径管对管,DN80-DN40 | 97 | 135 | 114 |
| YJ-ZT-DN80-50 | 80-50 | 变径管对管,DN80-DN50 | 97 | 135 | 114 |
| YJ-ZT-DN80-63 | 80-63 | 变径管对管,DN80-DN63 | 114 | 135 | 114 |
| YJ-ZT-DN100-50 | 100-50 | 变径管对管,DN100-DN50 | 100 | 153 | 131 |
| YJ-ZT-DN100-63 | 100-63 | 变径管对管,DN100-DN63 | 117 | 153 | 131 |
| YJ-ZT-DN100-80 | 100-80 | 变径管对管,DN100-DN80 | 117 | 153 | 131 |
| YJ-ZT-DN125-63 | 125-63 | 变径管对管,DN125-DN63 | 119 | 186 | 164 |
| YJ-ZT-DN125-80 | 125-80 | 变径管对管,DN125-DN80 | 119 | 186 | 164 |
| YJ-ZT-DN125-100 | 125-100 | 变径管对管,DN125-DN100 | 122 | 186 | 186 |
| YJ-ZT-DN150-80 | 150-80 | 变径管对管,DN150-DN80 | 119 | 208 | 185 |
| YJ-ZT-DN150-100 | 150-100 | 变径管对管,DN150-DN100 | 122 | 208 | 183 |
| YJ-ZT-DN150-125 | 150-125 | 变径管对管,DN150-DN125 | 124 | 208 | 183 |
| YJ-ZT-DN200-100 | 200-100 | 变径管对管,DN200-DN100 | 125.5 | 262 | 251 |
| YJ-ZT-DN200-125 | 200-125 | 变径管对管,DN200-DN125 | 127.5 | 262 | 243 |
| YJ-ZT-DN200-150 | 200-150 | 变径管对管,DN200-DN150 | 127.5 | 262 | 139 |
| 型号 | 规格 (mm) | 货描 | L | L1 |
|---|---|---|---|---|
| WT-C-DN20 | 20 | 万能90度弯头，DN20 | 77 | 52 |
| WT-C-DN25 | 25 | 万能90度弯头，DN25 | 81 | 55 |
| WT-C-DN40 | 40 | 万能90度弯头，DN40 | 109 | 72 |
| WT-C-DN50 | 50 | 万能90度弯头，DN50 | 127 | 79 |
| WT-C-DN63 | 63 | 万能90度弯头，DN63 | 181 | 114 |
| WT-C-DN80 | 80 | 万能90度弯头，DN80 | 193 | 120 |

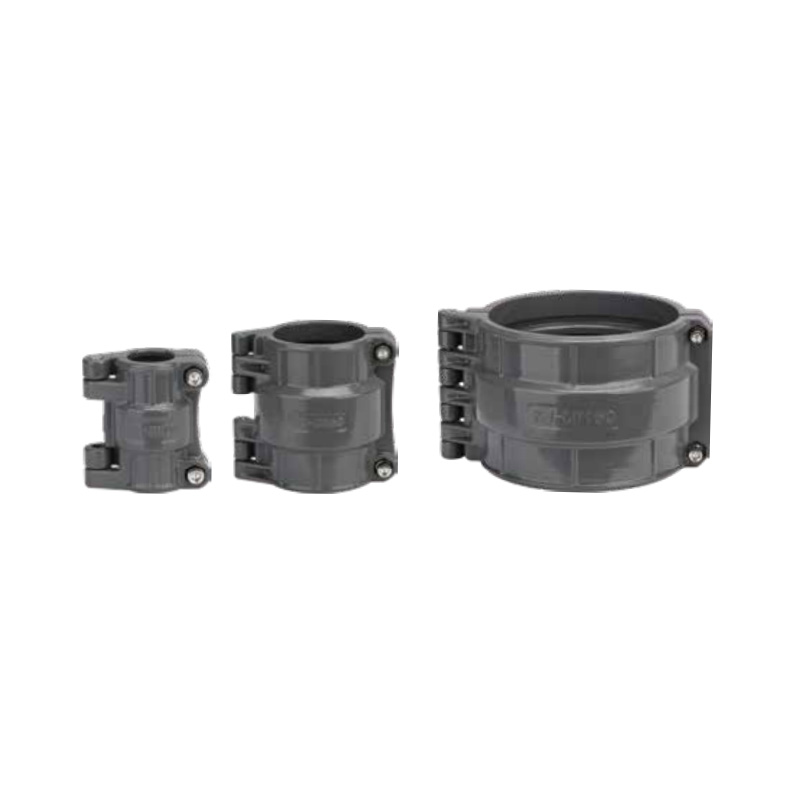

| 型号 | 规格 (mm) | 货描 | L | A | B |
|---|---|---|---|---|---|
| KJ-DN20 | 20 | 管对管接头DN20 | 60 | 56 | 36 |
| KJ-DN25 | 25 | 管对管接头DN25 | 60 | 62 | 42 |
| KJ-DN40 | 40 | 管对管接头DN40 | 80 | 78 | 58 |
| KJ-DN50 | 50 | 管对管接头DN50 | 80 | 90 | 73 |
| KJ-DN63 | 63 | 管对管接头DN63 | 114 | 125 | 97 |
| KJ-DN80 | 80 | 管对管接头DN80 | 114 | 142 | 114 |
| KJ-DN100 | 100 | 管对管接头DN100 | 120 | 161 | 131 |
| KJ-DN125 | 125 | 管对管接头DN125 | 120 | 193 | 160 |
| KJ-DN150 | 150 | 管对管接头DN150 | 125 | 224 | 184 |
| KJ-DN200 | 200 | 管对管接头DN200 | 130 | 284 | 238 |
| KJ-DN148 | 148 | 管对管接头DN148 | 130 | 213 | 179 |
